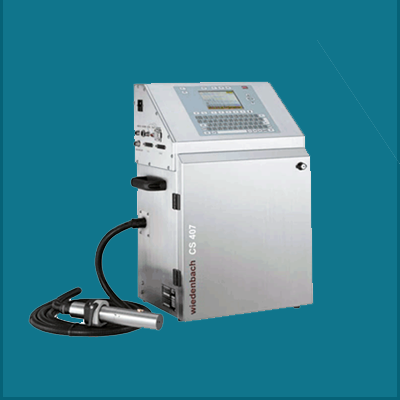

The Wiedenbach Inkjet Printer CS-407 is the specialist heavy pigmented inkjet printer to meet the most demanding printing applications, no matter how difficult they are.
Wiedenbachs inkjet systems convince through excellent print quality with high contrast inks. Maximum operational availability is ensured by short set-up and service times and best performance in connection with easy handling and reliable operation even at highest production speeds.
The CS-407 is equipped with a special ink circulation and mixer system -dispergator, which enables the printer to be a reliable solution for strong pigmented inks.
The CS-407 Inkjet Printer provides outstanding performance and high reliability with heavy pigmented inks, due to the Wiedenbach's unique diaphragm and hydraulic stirring system that is a pigment dispersal system. The diaphragm tank, which is supplied with air and ink is separated by a plate. This removes possible ink contamination from the polluted air in harsh work environments and also prevents nozzles from being blocked during operation.
The CS-407 Continuous Inkjet Printer is specially designed and constructed to endure the rigors of heavily pigmented inks such as light blue, green, orange, yellow, red, white, resulting in high contrast colours, superior adhesive properties and exceptional ink permanency.
The CS-407 Non-Contact Inkjet Printer is suitable for use in all industries, especially for the cable, wire, rubber horse, steel, automotive, plastic, PVC, PE, electrical and electronics industries.
The CS-407 Inkjet Printer is installed with a ink density measuring system through automatic solvent dosage, which provides stable ink drop formation and optimum print quality. The CS-407 Inkjet Printer has simple structures for easy access, due to hydraulic and electronic systems separated. It is designed for very easy integration, operation and maintenance for end-user control.
The printer is able to print at speeds of up to 13.50 meters per second or up to 4000 characters per second or 800 metres per minute, due to state of the art electronic system. This is the fastest printing speed in the world. It also prints characters from 0.8 to 12 mm in height, including characters in different print formats and fonts. Due to its superior high printing speed, the CS-407 Inkjet Printer can be integrated easily into both existing production lines and all modern high-performance production lines without problems.
The WIEDENBACH Inkjet Printer CS-407 is designed for coding, labelling and printing on all types of surfaces and difficult materials with a wide range of software options. These include various barcodes, 2D matrix codes, symbols, logos, meter marking, consecutive numbering, manufacturing details and special software programmes for different printing jobs adapted to customer specific requirements, guaranteeing high flexibility even with pigmented inks.
